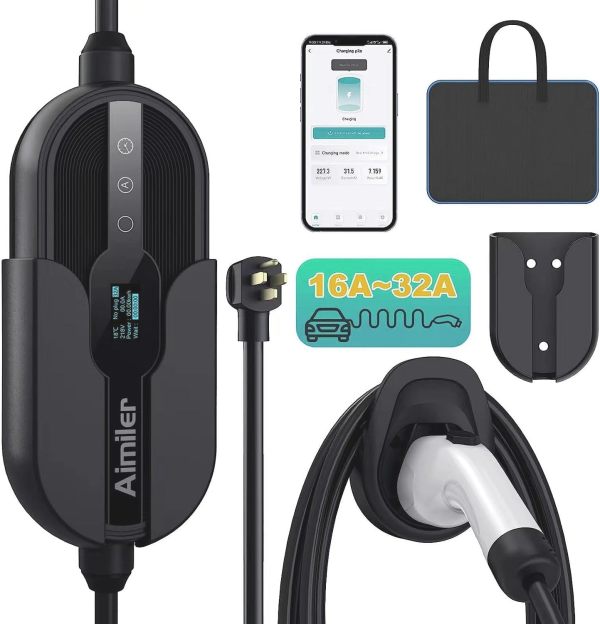

32A Electric Vehicle Charger, Level 2 EV Charger, Portable EVSE Charging Station for J1772 North America Cars, 220V-240V NEMA 14-50 Plug w/Delay Timer, 25ft Premium Cable ETL Certified 產品型號: 5058675

ETL, FCC and CE Certified EV Charger - Meets the Safety Criteria Defined by: SAE J1772, UL2231-1/-2, UL 991, UL 2231, UL 2251, UL1998 and UL 2594

Faster Level 2 EV Charger with ETL, FCC and CE Certified: The Aimiler ZA05 level 2 EV 240V 7.6kw home charging station is ETL Listed, Meets the Safety Criteria Defined by: SAE J1772, UL2231-1/-2, UL 991, UL 2231, UL 2251, UL1998 and UL 2594.

Fits for all EV cars: Equipped with NEMA 14-50 Plug, SAE J1772 TYPE 1 standard connector, so it is compatible with compatible with all America standard AC charging interfaces or plug-in hybrid vehicles, including Tesla (Adaptor Needed), Ford, GM, Volkswagen, Nissan, Audi, Honda, BMW and more.

25FT Long Bold Cable & Portable Storage Handbag & Wall-mount Included: Equipped with 25 feet military grade, TPE polymer encased pure copper charging cable, the drop-resistant plug endures over 10,000 charges, up to 2 tons of pressure, and offers a 20-year lifespan.

NEMA TYPE 4 & IP66 Waterproof, Safety Charging with 10 safety protections: The Aimiler EV charger can operate under the environment of -30℃ to 50℃ (-22 to 122°F). Approved by NEMA TYPE 4 & IP66 waterproof, the Aimiler ev charger can be used indoor or outdoor in any type of weather including snow, rain, hail, etc. Fire resistant, over-current, over-voltage, and over-temperature protection, etc.

Smart LED Touch Screen Control & 2.4G WIFI APP Control: You can control the ev charger by LED touch buttons or smart life APP control. Smart LED screen clearly display show the Amperage, charging speed, input voltage, delay time, help you charge safely. The cell phone remote control, real-time monitoring of your car's charging situation, allows your vehicles to be charged during off-peak period by setting the charging start time, save money on the electricity bills. Check charging cost, history, fully-charged notification, track the charging status or adjust the current.

Appoint Your Charging Start Time by LED Touch Screen Buttons or WIFI APP (How to connect with the App)

2 Ways to Control the Charging Start Time:

1. Pull out your charging gun, short press the "Time" button of the screen to delay your charging time. (It will start charge until the screen shows "Wait 00:00:00")

2. Down the smartlife app, add your device, then schedule your charging time.(You can search "Smart life" by Apple store(iPhone) or Google Store(Android phone) and download it.)

Kindly Note: For example, you can set your screen's delay time to 6 hours(06:00:00) at 5pm, then the ev charger will start charging on 11pm and it will automatically end until your car is fully of charging.(If you plug your charging gun at 5pm, you can set the screen time to 06:00:00 or set the delay 6 hours on your APP, then your car will start charging at 11pm)

How to connect with the App? (The Device name is "Aimiler-EV_Charger")

1. Make sure your phone to connect the 2.4G wifi, not connect the wifi whose name has 5G suffix; Open the wifi and bluetooth of your smartphone.

2. You can search "Smart life" by Apple store(iPhone) or Google Store(Android phone) and download the APP, register by yourself directly, then click the "add" button and search your device. (Open the bluetooth permission for this app in your smartphone)

3. Wait 3-5 seconds, then you will find the device and click "Add" button, then insert your wifi password and add it.

Troubleshooting: How to solve the issue of "Can't Connect APP":

1. Wifi reset: Pull out the charging gun, simultaneously long press the Ⓐ button and time button on the product screen until it shows "WIFI Reset", then re-start the machine.

2. Have a check with your smartphone's wifi name, confirm whether your phone's wifi has 5G suffix, if YES, please switch the 5G wifi to 2.4G wifi(Whose name doesn't have 5G suffix.)

3. Open the APP, open the wifi and bluetooth of your smartphone, then add the device.

Warmly note: It is not allowed to adjust the current during the charging: Stop the charging, then you can adjust current.(Because adjust the current when charging may cause abnormalities, so we set this function can be done after turn off the charging.

6X Faster Charging & Safety Charging

Equipped with 7.6kW up to 32A charging speed will never be an issue. The Aimiler ZA05 charging gun can easily full charge your Tesla Model 3 by 8 hours! (J1772 to Tesla Charging Adapter is not included).

Kindly note: If your car is the old edition of the Tesla, you can order a "J1772 to Tesla adapter" to charge your Tesla car with the Aimiler ev charger; If your Tesla car is the new edition, you can use the Aimiler ev charger to charge your car directly.

Fits for all ev cars sold on North America with J1772 TYPE 1 standard connector!

Equipped with NEMA 14-50 connector, J1772 TYPE 1 standard connector, so it is compatible with electric vehicles with American standard AC charging interfaces or plug-in hybrid vehicles, including Tesla (Adaptor Needed), Ford, GM, Volkswagen, Nissan, BMW, Benz, Audi and more.

Adjustable Current from 16A to 32A

You can short press "Ⓐ Button" of the machine to switch the amperage from 16A to 20A, 24A, 32A. You can also download the smart life app to change your current. (Please stop the charging before adjust the current because it will cause charging issues if adjust the current during the charging.)

You can long press "Ⓐ Button" of the machine to switch the charging modes to "Plug-and-Play" mode if your machine doesn't charge after plugged.
