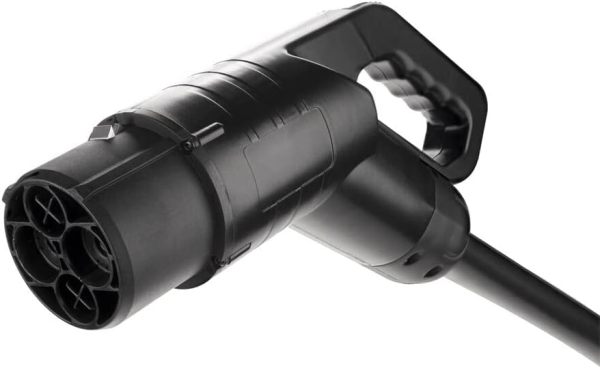

CHAdeMO EV Plug DC Fast Charging Connector With 5M cable
Product Features:
1.Nice shape, hand-held ergonomic design, easy to use;
2.Protection class: IP67(in mated conditions);
3.Widely applied to trickle charge of electric vehicle, electric minibus,electric bus and chargeable hybird power vehicles etc.
Plugs and connectors automotive
Product Features：
1.Meet the electric vehicle conductive charging connection deviceCHAdeMOTechnical standards and requirements;
2.Nice shape, hand-held ergonomic design, easy to use;
3.Protection class: IP55(in mated conditions);
4.Reliability of materials, antiflaming, environmental protection, abrasion resisitance, impact resistance, oil resistance and Anti-UV
Specifications：
1.plugs and connectors automotive
2.TUV&ULRoHs Certification
3DC125A CutoffIP55Charge:IP67
4.CHAdeMO standards
Plugs and connectors automotive Electrical Performance：
1.Rated current: 125A;
2.Operating voltage: 1000V DC;
3.Insulation resisitance:>2000M(DC1000V);
<;50K;
5.Withstand voltage:3200V;
6.Contact impedance: 0.5m Max
7.Vibration resistance:Meet JDQ53.36.1.1-53.36.1.2 requirements.
Plugs and connectors automotive Mechanical properties：
1.Mechanical life: no-load plug in/pull out >10000 times
2.Insertion and Extration Force: 70N
Plugs and connectors automotive Materials：
1.Shell material: Thermoplastic (Insulator inflammability UL94 V-0);
2.Contact Pin: Copper alloy, silver or nickel plating;
3.Sealing gasket: rubber or silicon rubber;
Meet GB/T 20234.3-2015 regulations and requirements
Nice appearance, hand-held ergonomic design, easy plu
Insulation resistance: 2000MQ2(DC1000V)
<;50K
contact with staff
<;50K
Excellent protection performance, protection grade IP55
U94V-0Mechanical life: no-load plugin/pull out> 10000 times
Case Material: Thermoplastic
