SPECIFICATIONS：
Use only to connect the charging cable on a
CHAdeMO charging station to a vehicle that has
been enabled for DC charging. The location of the
charge port will vary depending on your vehicle
model. Refer to your vehicle’s owner
documentation for the location of the charge port and
more detailed charging instructions.
CAUTION: Do not operate or store the
CHAdeMO adapter in temperatures outside the
ranges listed above.
CHARGING TIME：
Charging times vary based on the power and current
available from the charging station, subject to various
conditions. Charge time also depends on ambient
temperature and the vehicle’s Battery temperature. If
the Battery is not within the optimal temperature
range for charging, the vehicle will heat or cool the
Battery before charging begins.
Voltage：
Enclosure Rating IP55
Operating
Temperature
-22°F to 122°F
-30°C to +50°C
Storage
Temperature
-40°F to +185°F
-40°C to +85°C
*Full current may not be available when operating at
Rated Current:
125A
Operating Voltage
DC 500V
Insulation Resisitance
>1000M(DC500V)
Withstand Voltage
2000V
Contact Pin
Copper alloy, Silver plating
Working temperature
-30°C ~+50°C
Flame RetardantGrade
UL94 V-0
Contact Resistance
0.5m Max
Waterproof
IP55
Certificate
CE, TUVApproved
Product Name：

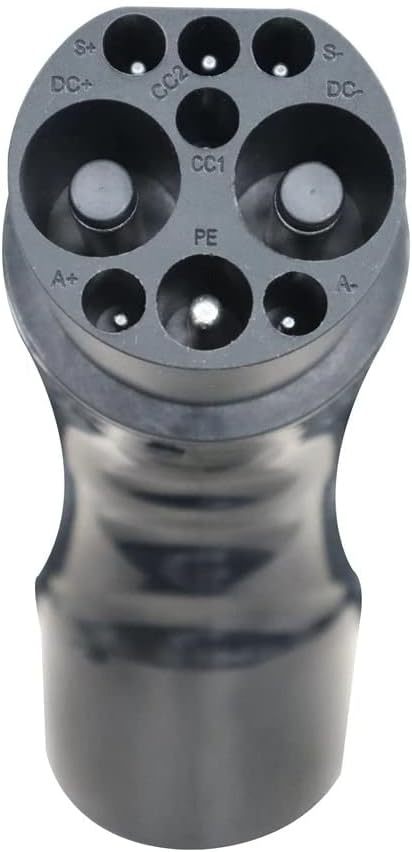

Smart EV charging CHAdeMO to GB/T plug adapter 100-500V DC output car charger
1.Conform to the provisions and requirements ofIEC 62752,IEC 61851.
2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.TPE for cable insulationprolonging the aging resistancelife-span, TPE sheath improved the bending life and wear resistance of ev charging cable.
4.Excellent protection perform
