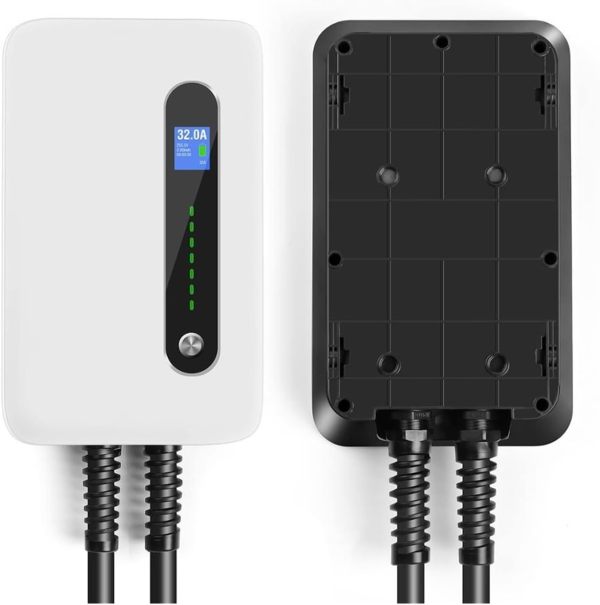

Electric Vehicle Charging Stations EV Charging Station Cable 32A Electric Vehicle Car Charger Wallbox Wall Mount Type 2 Cable IEC 62196-2 Level 2 240V 7.6KW 產品型號: 5057073

32 Amps, 240V, 7.6KW, Level 2, Mode 3 Home EV Charging Station.
High compatibility, This charger is suitable for all Type 2 EU standard electric cars.
The station uses plastic and ABS material to be stronger. Button start mode and easy installation.
LCD to display all the car's data on the charging station during charging. You can see the state of charge, including current, voltage and temperature.
The 20ft cable leaves enough space between your car and the charging station.
Installation Method: Wall/Stand
IP Rating: IP66
Rated Voltage:220V - 240V
Rated Current:32A
Maximum Power:7.6KW
Phase Mode:Single Phase
Operating Temperature:-40°C ~ +70"C
Enclosure Material:ABS+PC alloy
Length of Cable:6.1M
Diameter the electric wire: 2*8mm²+1*6mm²
EV charging station *1
Metal back plate *1
30mm screw *10
Plastic bolt *10
10mm screw *4
User manual *1
Hook *1 (gift)
Installation Guide:
1.Drill holes according to the position of the iron plate
2.Hammer the 30mm plastic bolts into the holes
3.Fix the iron plate with 30mm screws on the wall
4.Embed the wall box into iron plateon the wall
5.Mounting screws from both sides. You can put the hook anywhere you need. The cable can be hungon the hook
6.Connect the power wire to the distribution box. This is the final completion picture after you successfully install the wall box
Instruction ForUse:
1.Make sure the wall box is connected to the power
2.Press the button on the wallbox to start/stop charging
3.Connect the EV and the wallbox with the charging plug
