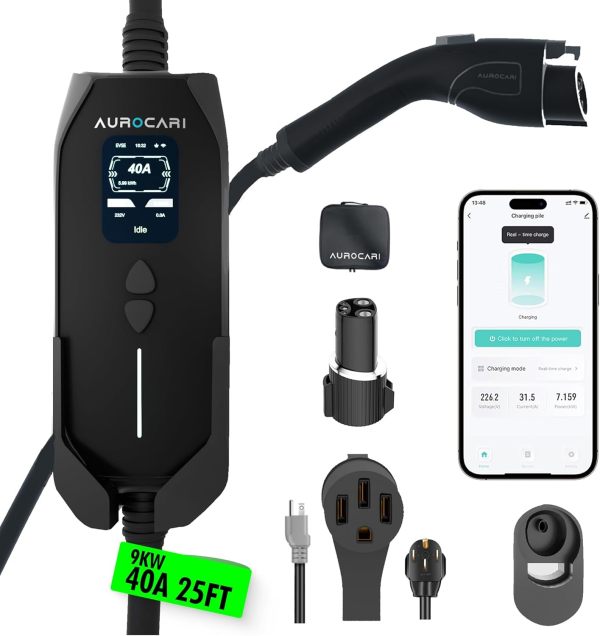

Level 2 EV Charger 40A 240V with J1772 NEMA 14-50P 9.6KW Wall Mounted Portable Electric Vehicle Charging Station with TSL High-end Adapter and 25ft Cable Adjustable Current Timing Delay 產品型號: 5058315

At Aurocari, we carry the future of EV charging, empowering you to take your journey further and faster. Inspired by the dance of the auroras, we’ve developed a line of chargers that embody power, elegance, and reliability.

Faster Level 2 EV Charger with UL, ETL, FCC and CE Certified:

The ZA05 level 2 EV 240V 9.6kw home charging station is ETL Listed, Meets the Safety Criteria Defined by: SAE J1772, UL2231-1/-2, UL 991, UL 2231, UL 2251, UL1998 and UL 2594.

Wide Compatibility with Popular EV Models:

Featuring an SAE J1772 connector, the TYPE S Level 2 EV Charger is compatible with a wide range of electric vehicles in North America (include Tesla).

Compatible models include:

Chevrolet: Bolt EV, Bolt EUV, Ford: Mustang Mach-E, F-150 Lightning, Hyundai: Ioniq 5, Ioniq 6, Kona Electric, Kia: EV6, Niro EV, Genesis: GV60, Nissan: Leaf, Volkswagen: ID.4, ID.3, ID.Buzz, Audi: e-tron, e-tron GT, BMW: i3, i4, iX, Mercedes-Benz: EQC, EQS, Rivian: R1T, R1S, Lucid: Air, Toyota etc

Included Components: Carry Bag*1 User Manual*1 Control Box Holder*1 40A EV Charger*1 Charger Cable Holder*1 TSL adapter*1

The most efficient charging setup for an EV depends on several factors, including charging speed, cost-efficiency, battery health, and convenience. To achieve the optimal balance of these factors, the following components should be considered in your setup:

1. Level 2 Home Charging Station (40A)

Why Level 2? Level 2 charging stations, which run at 240V and typically provide 40A, strike a good balance between charging speed and battery longevity. They offer charging speeds of up to 9.6 kW, enabling a faster charge than Level 1 (120V), but without the stress and heat generation of DC fast charging.

· Efficiency: Level 2 chargers are highly efficient for overnight charging, especially when paired with time-of-use (TOU) electricity rates. They can fully charge most EVs in 6-10 hours, making them ideal for regular home use.

· Best For: Home charging where the vehicle can charge overnight or for long hours, providing a reliable and convenient option without the need for costly upgrades or constant fast charging.

2. Smart Charging Features (Time-of-Use and Scheduling)

· Smart Charging: Many modern chargers and EVs come with smart charging capabilities, allowing you to schedule charging during off-peak hours, which can dramatically lower electricity costs.

· Time-of-Use (TOU) Rates: By scheduling charging to start during off-peak electricity hours (usually late at night), you can take advantage of lower rates, saving money while keeping your car ready to go in the morning.

· Best For: Reducing electricity costs while charging efficiently. This is especially important if your area offers time-of-use rates for electricity.

3. Portable Level 2 Charger

· Flexibility: Having a portable Level 2 charger allows you to charge at home or on the go, especially if you often travel to places that might not have dedicated charging stations. A portable charger can plug into various outlets, such as NEMA 14-50, which you might find at RV parks or campsites.

· Efficiency: Portable chargers are typically slower than wall-mounted units but offer flexibility and the ability to charge at a reasonable speed in remote locations.

· Best For: Flexibility when traveling and charging away from home. It complements a home-based Level 2 charging setup.

4. Time-Optimized Charging

· Scheduled Charging: Many chargers allow you to schedule charging sessions to start and stop at specific times. This means you can optimize when the vehicle charges, reducing unnecessary charging time at higher charge levels (like near 100%) that could strain the battery.

Appoint Your Charging Start Time by LED Touch Screen Buttons or WIFI APP (How to connect with the App)

2 Ways to Control the Charging Start Time:

1. Pull out your charging gun, short press the "Time" button of the screen to delay your charging time. (It will start charge until the screen shows "Wait 00:00:00")

2. Down the smartlife app, add your device, then schedule your charging time.(You can search "Smart life" by Apple store(iPhone) or Google Store(Android phone) and download it.)

Kindly Note: For example, you can set your screen's delay time to 6 hours(06:00:00) at 5pm, then the ev charger will start charging on 11pm and it will automatically end until your car is fully of charging.

How to connect with the App?

1. Make sure your phone to connect the 2.4G wifi, not connect the wifi whose name has 5G suffix; Open the wifi and bluetooth of your smartphone.

2. You can search "Smart life" by Apple store(iPhone) or Google Store(Android phone) and download the APP, register by yourself directly, then click the "add" button and search your device. (Open the bluetooth permission for this app in your smartphone)

3. Wait 3-5 seconds, then you will find the device and click "Add" button, then insert your wifi password and add it.

Troubleshooting: How to solve the issue of "Can't Connect APP":

1. Wifi reset: Pull out the charging gun, simultaneously long press the Ⓐ button and time button on the product screen until it shows "WIFI Reset", then re-start the machine.

2. Have a check with your smartphone's wifi name, confirm whether your phone's wifi has 5G suffix, if YES, please switch the 5G wifi to 2.4G wifi(Whose name doesn't have 5G suffix.)

3. Open the APP, open the wifi and bluetooth of your smartphone, then add the device.

Warmly note: It is not allowed to adjust the current during the charging: Stop the charging, then you can adjust current.(Because adjust the current when charging may cause abnormalities, so we set this function can be done after turn off the charging.

2 Usage Modes:

The package includes a wall mount box holder that securely allows you to mount the portable electric car charger for Tesla and SAE J1772 on a wall.

When you're on the go, the storage bag of this dual electric vehicle charger makes it convenient to take with you. Additionally, our portable electric vehicle charger for garage boasts an IP65 rating, ensuring its resilience throughout all seasons. Whether indoors or outdoors, the portable EV charger is the perfect solution for EVs.
