| 商品名稱 | Portable EV Charger Level 1+2, 110V-240V 16A/13A/10A/8A Smart WiFi Enabled Electric Vehicle Car Charging Stations, Indoor/Outdoor EVSE SAE J1772 EV Car Charger with 25 ft Cable |
| 產品型號 | 5058616 |
| 重量 | 0 kg = 0.0000 lb = 0.0000 oz |
| 分類 | Electric vehicle charging station |
| 創建日期 | 2024-12-03 |
Product Description

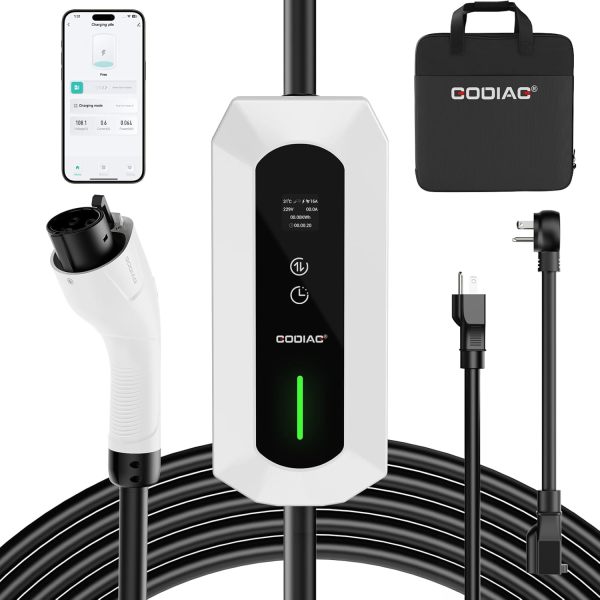

Why Godiag Portable LEVEL 1 and Level 2 EV Charger Wifi Enabled is a good choice?
1. Godiag EV Charger support both Level 1 and Level 2, voltage range from 110V to 240V. It is a great choice of ev chargers for home level 2.
2. Flexiable current setting range from 8A/10A/13A/16A. For 16 Amps you need will an 20A circuit breaker. Charge Rate 10-12 miles per hour at 16A. (Kindly note: Some electric vehicle may turn down the current automatically when the voltage is unstable.)
3. Smart APP equipped. Godiag EV car charger equipped with smart app, allows you to real-time monitoring your car's charging situation. Your vehicles can be charged during off-peak period by setting the charging start time(1-12H Delay), save money on the electricity bills.
4. 25FT cable. Considering the parking space, 25ft cable will be long enough for you to reach your electric car’s port!
5. You can turn it into a Tesla charger with the Tesla to J1772 adapter.
6. Godiag EV Charger is a portable electric car charger, you can put it into your trunk and use it for outdoor.
What will influence the Electric Car Charger fully charging your battery?
- Your EV’s battery size: the bigger it is, the longer it will take to charge.
- Your electric vehicle charging equipment max power capacity: even if the vehicle on-board charger can accept a high power, if the home electric vehicle charging stations can only output less, it will not charge the vehicle as fast as it can.
- Your EV’s on board charger power capacity: it can only accept a maximum power intake on 120V and 240V. If the electric car charger can supply more, the vehicle will limit the charging power and affect the time to charge
- Environmental factors: a very cold or very hot battery can limit the max power intake and thus affect charging time.
|
|
|
|
|---|---|---|
Intuitive status LED IndicatorsGodiag EV Charger has three intuitive status LED indicators. 1. Standby mode, steady Blue light 2. Insert the EV charger, steady Green light 3. Start charging, Green light flashing. 4. CP Fault, steady yellow light 5. Voltage error, yellow light blink once |
Certified SafetyOver/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection, Over current protection, Current leakage protection, Grounding protection. IP66 Waterproof |
Portable Storage BagMade by durable material, the Godiag EV Charger portable storage bag helps you easily storage your EV charger and carry it anywhere you want. |
How to connect with the App for Godiag EV charger level 1 and 2 ?
1. You can scan the QR code on the user manual to download the app or just search "smart life" in the app store.
2. Open the installed APP, click "Agree privacy Statement", and log into the APP after registration. Plug and charge to enter the Plug and Play charging mode. Open the Location, Bluetooth, and Wifi of the mobile phone. If the Godiag Level 1 and Level 2 ev charger is in standby state, the APP will automatically search for the charging device and the device name will be displayed.
3. Click "Add" to add the device, enter the WIFI pairing interface, automatically identify the WIFI name of the phone. Click “Next”, and the EV charger will be automatically connect. After the connection is successful, a message will be displayed indicating that the EV Car charger has been successfully added. Finally, click the icon of "Finish" and wait about 5 seconds for the device to be bound.
4. You can also click "+" in the upper right corner of the APP to manually add the electric car charger, select the category of "Energy saving" in the left column, pull up the device type, find the device "EV Charger (Bluetooth + WIFI)", Click to enter, then follow the prompts and click on "Confirm if the indicator light is flashing", then click on "Quick flashing" again.
5. Enter the WIFI password (WIFI password connected to the mobile phone) and click "Next" to match the password, and set the bound device as prompted.
6. After binding the device, charge it according to the APP interface. In addition, the application can also support the functions of "adjusting current" and "delayed charging".
|
|
|
|
|---|---|---|---|
| Godiag Level 1+2 Wifi Enabled EV Charger | Godiag Level 1+2 EV Charger | Godiag LEVEL 2 EV Charger | |
| Customer Reviews |
38
|
155
|
155
|
| Price | $157.99 | $119.99 | $159.99 |
| Max Current | 16A | 16A | 32A |
| Max Power | 3.7KW | 3.5KW | 7.68KW |
| Smart APP | |||
| LED Indicator | 3 indicators | 3 indicators | 3 indicators |
| Safety Standard | SAE J1772 | SAE J1772 | SAE J1772 |
| CURRENT ADJUSTMENT | 8/10/13/16A | 8/10/13/16A | 10/16/24/32A |
| Cable Length | 25ft | 21ft | 21ft |
| IP RATING | IP66 | IP65 | IP65 |
| WORKING TEMP. | −22°F to 122°F | −22°F to 122°F | −22°F to 122°F |
