Type 2 Charging Cable for Electric Vehicle, 5m Cable Type 2 to Type 1, Compatible SAE J1772 EV Cars

Type 2 Charging Cable for Electric Vehicle, 5m Cable Type 2 to Type 1, Compatible SAE J1772 EV Cars 產品型號: 5057062

評論
US$ 175.20
數量

復制並分享社交網絡上的鏈接發送給您的朋友。

復制
商品名稱 Type 2 Charging Cable for Electric Vehicle, 5m Cable Type 2 to Type 1, Compatible SAE J1772 EV Cars
產品型號 5057062
重量 0 kg = 0.0000 lb = 0.0000 oz
分類 Electric vehicle charging station
創建日期 2024-11-29


Product Description

EV Charging Cable 13
EV Charger Cable

EV Charging Cable

EV Charging Cable 3
For the packaging

  • 1x Pizza box
  • 1x Oxford cloth bag
  • 1x EV charging cable

ABOUT EV CHARGING CABLE

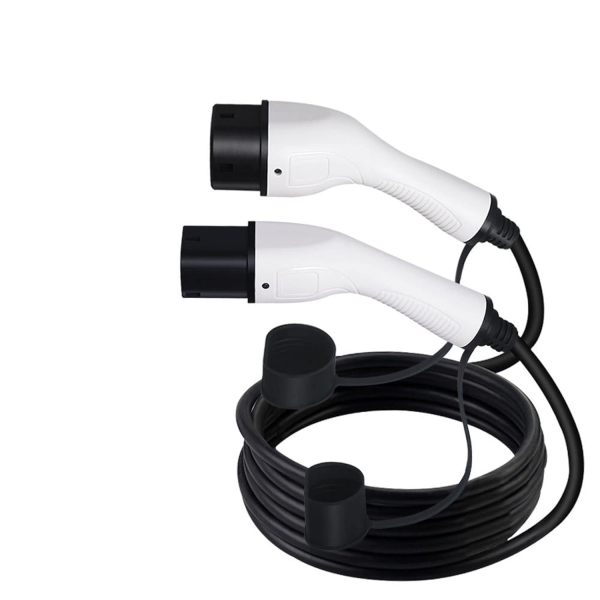

EV charging cable, Type 2 to SAE J1772 type 1, Female to Male Plug 1 Phase AC 32A 7KW 5M Cable.

This is a plug and play, fast charging extension cord, ideal to have in case of emergencies. it is the perfect charging cable for home use and with the cable that is long enough for most driveways or garages.

  • High Compatibility: The EV charging cable is compatible with most electric vehicles on the market.
  • Fast Charging: The 32A charging cable allows for quick and efficient charging, providing up to 7KW of power.
  • Safe Charging: The cable is equipped with a variety of safe features, including over-voltage protection, over-current protection, and over-temperature protection.
  • Easy to Use: The cable is easy to install and use, with a Type 1 to Type 2 plug adapter that fits most charging stations.
  • Convenient Length: The 5m cable length provides enough reach to comfortably charge your electric vehicle.

EV Charging Cable 4

Type 1 EV Charger

EV Charging Cable 6

EV Charging Cable 7

Better Conductivity

Silver plating on the pins ensures greater conductivity, charging efficiency and reduces heat generation.

Integrated Design Plug

K10 rated with an integrated design ensuring that you can charge safely in wind and rain, but please note that product cannot be soaked in water for a long time.

Ergonomic Design & Crush Resistance

Reasonable structural design and special raw materials,no fear of being crushed by cars.

Excellent TPU & Copper Weld Wire Materials

The charging cable meets the latest EN standard request of an electric vehicle charging cable.Highly resistant to the cold & heat.

How to use the EV charging cable for cars?

EV Charging Cable 8

EV Charging Cable 9

EV Charging Cable 10

EV Charging Cable 11

1.Take out EV charging cable

2.Plug into charging station outlet

3.Plug into the car charging Port

4.Straight cable charging

Basic Parameters

Protection rank IP55
Fire retardant level 94 V-0
Rated Current 32A
Rated voltage 110~240V
Insulation resistance > 100M ohm (DC 500V)
Terminal temperature rise <50K
Contact resistance 0.5m ohm Max
Coupled insertion force >45N <80N
Operating temperature -30℃ to 50℃
Mechanical life no load plug in / pull out > 10000 times
Impact of external force qualify 1m drop or 2 Ton vehicle run over
Connector by copper alloy with nickel bottom plating and 3um silver surface plating
Shell white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
Cable Black with TPU jacket. Other color optional by customizing
